Open Hook 22000LM 150W 277V LED UFO High Bay Light

Product Categories
Ledsion Lighting LLC
Contact Now

Open Hook 22000LM 150W 277V LED UFO High Bay Light

Brand Name : LEDSION

Model Number : LS7EHB150WBCPD1

Certification : UL, DLC

Place of Origin : China

MOQ : 2pcs

Price : Negotiation

Payment Terms : T/T, CC, Check, PP, Western Union

Supply Ability : 1000pcs/week

Delivery Time : 1-2days

Packaging Details : Carton package, 2pcs/ctn, 14.6*14.6*17inch, 18lbs, 2310pcs/40HQ , 1970Ppcs/40GP, 950pcs/20GP

Product Name : 7G 150W LED UFO High Bay light

Model No. : LS7EHB150WBCPD1

Lumen Efficiency : 130-146lm/W

LED Chips : SMD 2835

LED Qty : 400 PCS

CRI : >80Ra

Lumens output : 19500-22000LM

Input Voltage : 100-277V ac 50/60Hz

Viewing Angle : 110°

Working Temperature : -30-+45℃

Storage Temperature : -40℃ TO 80℃

Power Factor : >0.9

IP Rating : IP65

Color : Black / White

Warranty : 5 years

Certificate : UL, DLC

Contact Now

7G LED UFO Highbay light with open hook 150W 130lm/W 1-10V dim 5000K 100-277Vac

Main Features:

  • UL DLC certificate
  • Input voltage 100-277Vac
  • No UV or IR in the beam
  • Easy to install and operate
  • Energy saving, long lifespan
  • Instant start, NO flickering, NO humming
  • Green and eco-friendly without mercury
  • Output constant current lever can be adjusted through output cable with 1-10V PWM Resistance three in one dimming.


Applications:

  1. Food Warehouse, factory and workshops;
  2. Highway toll station and gas station;
  3. Exhibition hall;Gymnasium and supermarkets, etc.

After-Sale Service:


1. Quick reply on customers' questions;
2. If anything goes wrong with the products' quality, we will replace for you free
3. Make you a happy ordering.

Basic Specification:

Product Specifications

Product name LED High Bay Light
Part No LS7EHB150WBCPD1
Dimension Ф290x192 mm or Ф290x205 mm


Technical Characteristic

Color temperature 4000K 4500K 5000K 5700K
CRI >80
Cover Clear PC
Lumen 19500-22000LM
Viewing Angle 110°
Input Power 150W
Input Voltage 100-277Vac 50/60Hz
Driver Brand China Brand Driver (1-10V/PWM/Resistance three in one dimming )
Optional Accessory Motion Sensor/Surge-Protective Device
PF >0.9
Waterproof Rating WET (IP65)


Materials

LED Type 2835(0.5W)
LED QTY 400 PCS
Housing Aluminum
Housing color Any color
Cover PC cover


Others

Operating Temperature -40℃ TO 50℃
Operating Humidity 10％-90％ RH
Storage Temperature -40℃ TO 80℃
Storage Humidity 10％-95％
Application Indoor
Safety Certification UL cUL
Warranty Time 5 Years

Open Hook 22000LM 150W 277V LED UFO High Bay Light

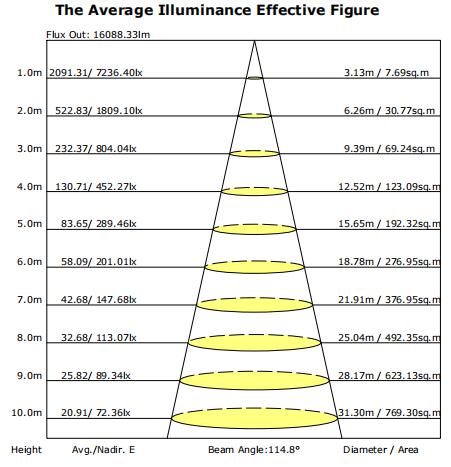

Photometrics:
Open Hook 22000LM 150W 277V LED UFO High Bay Light
Open Hook 22000LM 150W 277V LED UFO High Bay Light


Product Dimension(mm):

Item With open hook with U bracket
150W Φ290×192mm Φ290×205mm

Open Hook 22000LM 150W 277V LED UFO High Bay Light
Package:

Size Qty / Carton Gross Weight / Carton
inner box 345x345x195mm 1 PC 4.0 KG
Outer box 370×370×430mm 2 PC 8.1 KG



Warehouse introduction:
Ledsion Ligting has its own warehouse in Dallas, TX 75247, USA. Warehouse area up to 50,000 square feet. We have professional person responsible for warehouse operation. Professional after-sales service, and professional logistic team, can send out all the goods in the same day customer ordered.
Open Hook 22000LM 150W 277V LED UFO High Bay Light

Open Hook 22000LM 150W 277V LED UFO High Bay Light
